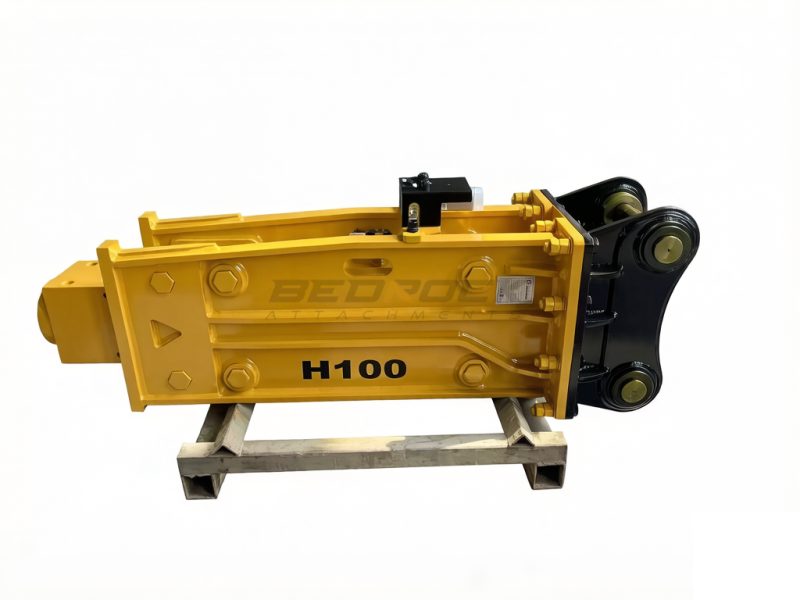

Hammer Breaker, Caterpillar Cat

Hydraulic Hammer for 10 - 15 ton Machinery, 70mm x 2, 315 Linkage

SKU: EH100315


Operating pressure: 150-170kg/cm² (2130-2414 psi / 147-166 bar)
Hydraulic flow range: 80-110l/min (21.1-29.1 gal/min)
Impact frequency 350-700bpm
Impact Energy 1690-1720J
Diameter of hose: 19.05mm
Diameter of Tool 100mm/3.94inch
Weight of Tool 57kg
Suitable Carrier: 0.4-0.6 m3
Suitable Carrier: 10-15ton
Valve Type: Inward
Accumulator exists: No

Body Weight: 479 kg / 1054 lbs
Total weight: 866 kg
Length: 2387 mm
Width: 458 mm
Height: 570 mm ◀ Less
