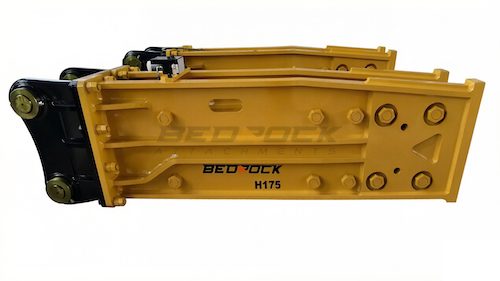

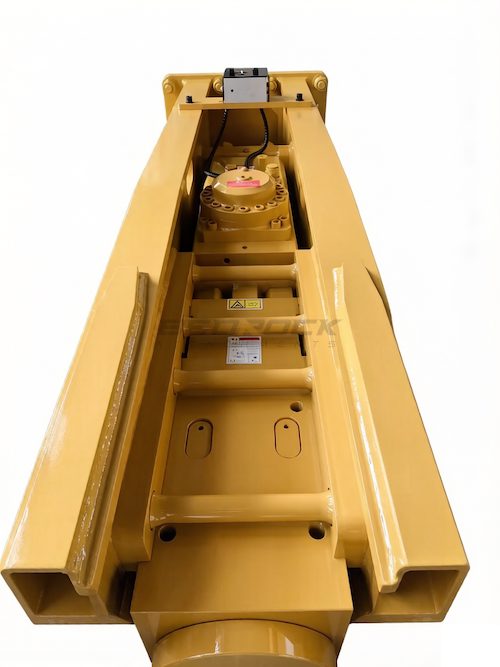

Hammer Breaker, Caterpillar Cat

Hydraulic Hammer for 35 - 40 ton Machinery, 110mm & 100mm , TB Linkage

SKU: EH175TB


Operating pressure: 180-200kg/cm² (2559-2844 psi / 176-196 bar)
Hydraulic flow range: 210-290l/min (55.44-76.56 gal/min)
Impact frequency 200-350bpm
Impact Energy 11925-12200J
Diameter of hose: 31.75mm
Diameter of Tool 175mm/6.89inch
Weight of Tool 235 kg
Suitable Carrier: 1.4-1.8 m3
Suitable Carrier: 35-40ton
Valve Type: Inward
Accumulator exists: Yes

Body Weight: 1938 kg / 4257 lbs
Total weight: 4032 kg
Length: 3812 mm
Width: 764 mm
Height: 920 mm ◀ Less
