Hammer Breaker, Caterpillar, Cat

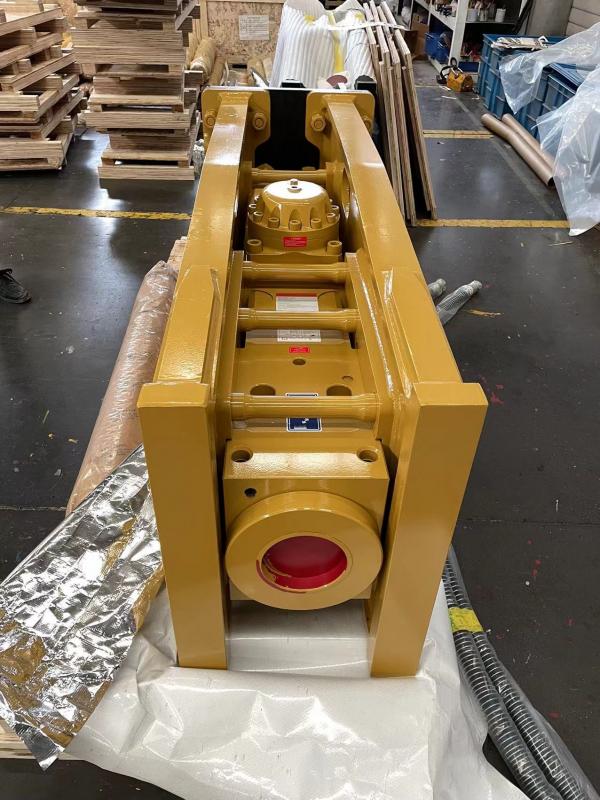

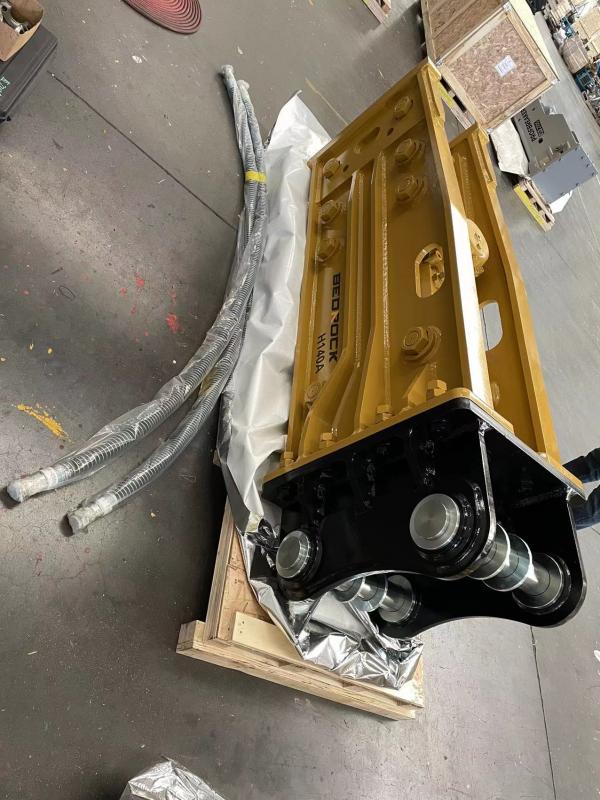

CAT 320, 20TON EXCAVATOR HAMMER H140

SKU: EH320

Fit to
CAT 320D
KOMATSU PC200, PC210, PC220,
HITACHI EX200,
KOBELCO SK200, SK210E
VOLVO EC210
SUMITOMO SH200, SH210

Operating pressure: 160-180kg/cm² (2272-2556 psi / 157-177 bar)
Hydraulic flow range: 120-180l/min (31.7-47.6gal/min)
Impact frequency 350-550bpm
Impact Energy 3900-4100J
Diameter of hose: 25.4mm/1inch
Diameter of Tool 140mm/5.51inch
Weight of Tool 135kg
Suitable Carrier: 0.7-0.9m³
Suitable Carrier: 18-26ton
Valve Type: Inward
Accumulator exists: Yes

Body Weight: 956kg (2103lb)
Total weight: 2094kg
Length: 2866mm
Width: 575mm
Height: 710mm ◀ Less
