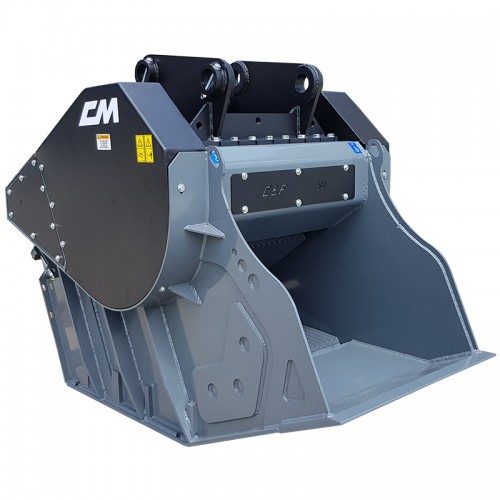

Crusher, Bucket, Gensco, CBF Series

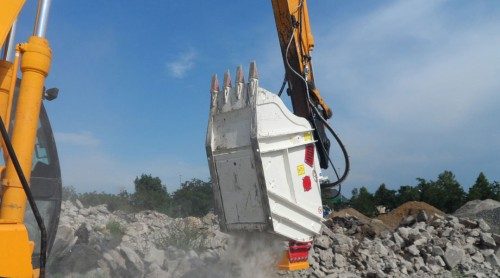

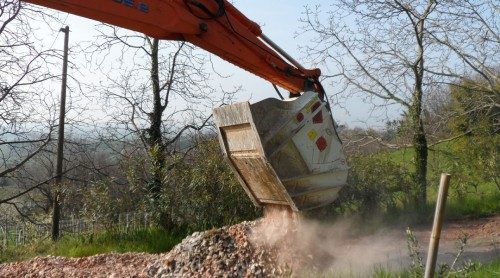

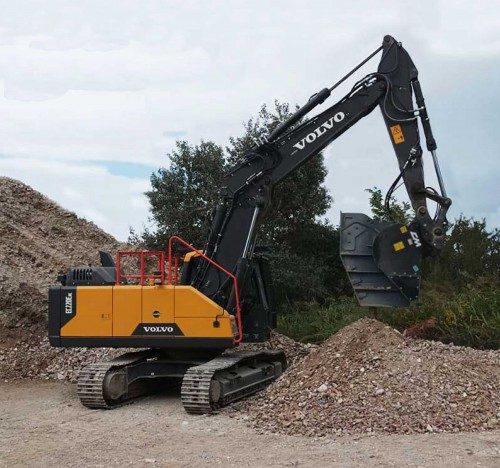

The new CBF series of bucket crushers from GENSCO offer many outstanding and unique features for efficient production and long term reliability at the job site. With models suitable for machines from mini excavators and skid steer loaders through 50T+ machines, there is a model for every application. Outstanding and unique hydraulic and mechanical features make the CBF bucket crushers the choice of smart operators. Ask for details. GENSCO in operation since 1919 and a leading supplier of attachments. Toll free: 800-268-6797.

BRIEF SPECIFICATIONS;

Model: CBF 05
Excavator weight (ton): 7.5 – 12
Mouth size (in.): 19.7” x 16.5”
Opening (in.): 1:” – 3.9”
Weight (lbs): 2825

Model: CBF 06
Excavator weight (ton): 12 - 15
Mouth size (in.): 23.6” x 19.7”
Opening (in.): 1:” – 3.9”
Weight (lbs): 3595

Model: CBF 07
Excavator weight (ton): 15-22
Mouth size (in.): 27.6” – 21.7”
Opening (in.): 1:” – 4.9”
Weight (lbs): 4960

Model: CBF 09
Excavator weight (ton): 22-33
Mouth size (in.): 21.7” x 35.4”
Opening (in.): 1:” – 4.9”
Weight (lbs): 7500

Model: CBF 12
Excavator weight (ton): 33-50
Mouth size (in.): 47.2” x 21.7”
Opening (in.): 1:” – 4.9”
Weight (lbs): 11000
